The PULSE P800X is crafted for systems that demand consistent output and thermal clarity. With a reinforced steel frame, airflow-focused internal layout, and support for 140mm fan configurations at both the front and top, it’s made to power a wide range of high-performance builds—designed to stay cool, clean, and controlled under pressure.

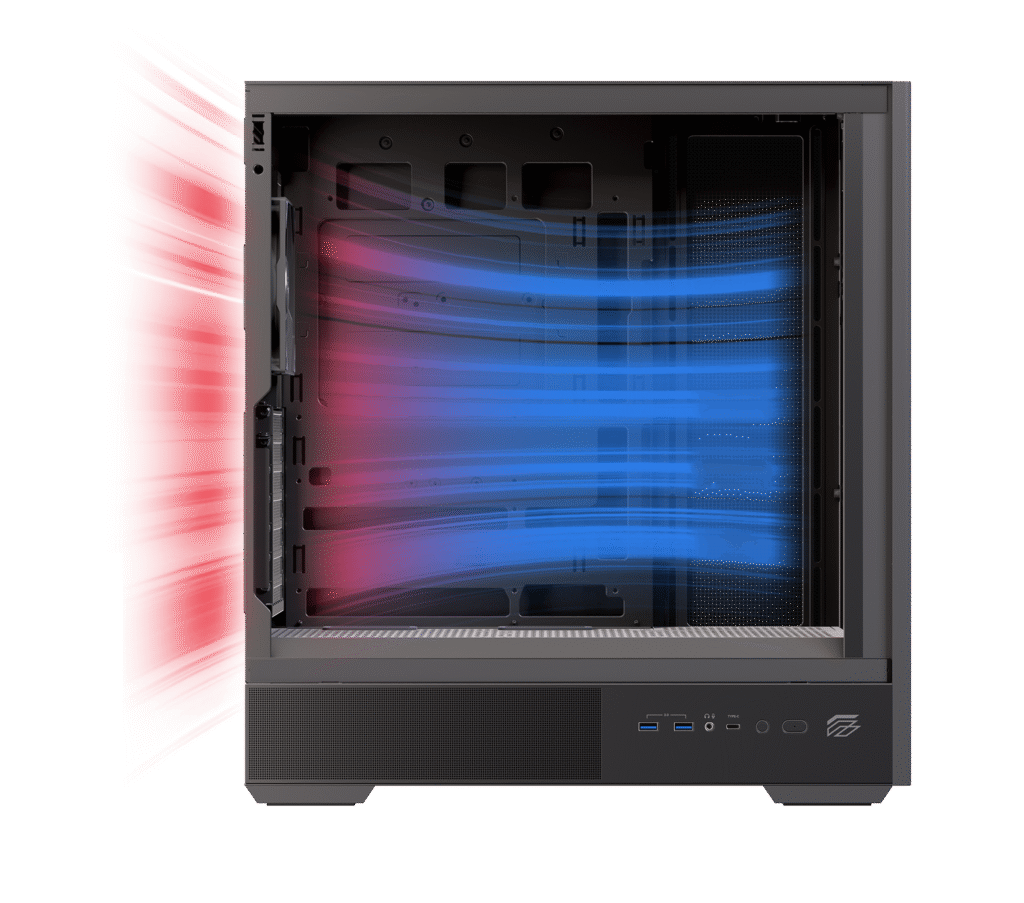

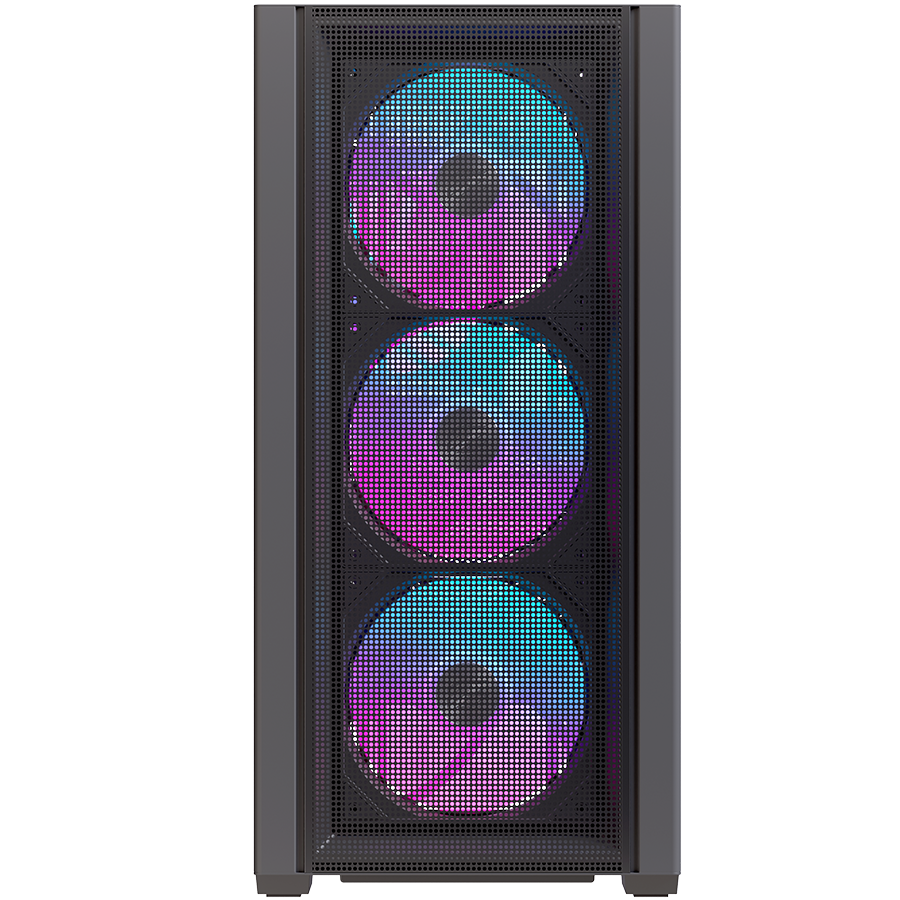

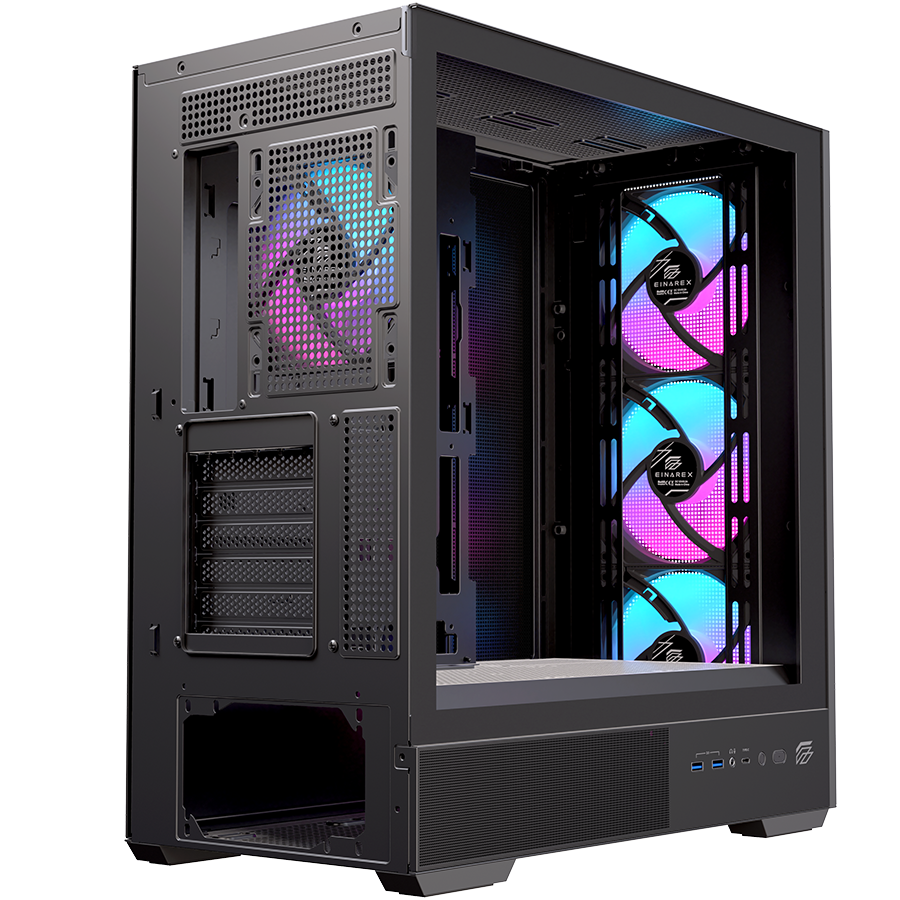

Equipped with a full mesh front panel, ventilated PSU shroud, and support for up to 13 fans, the PULSE P800X is built around airflow. It accommodates 120mm and 140mm fans, with 3x pre-installed 140mm fans in the front for RGB version, plus 360mm radiators on the top and side. Multiple intake and exhaust paths ensure uninterrupted airflow and consistent thermal regulation—even under heavy load.

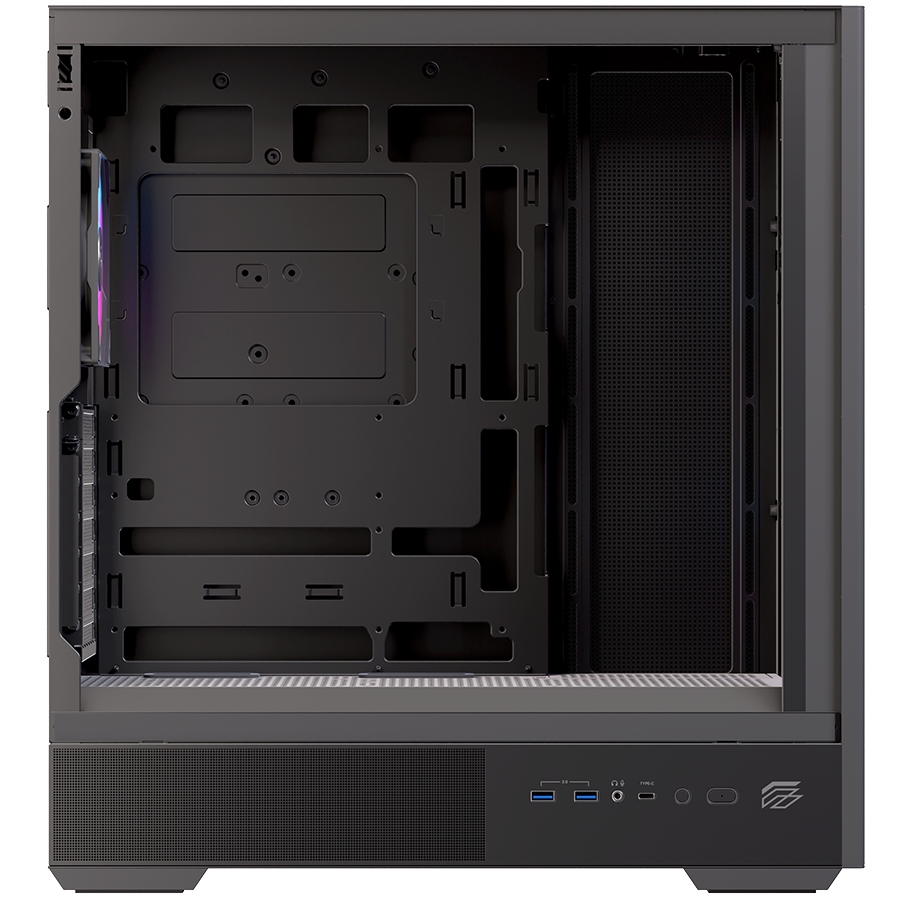

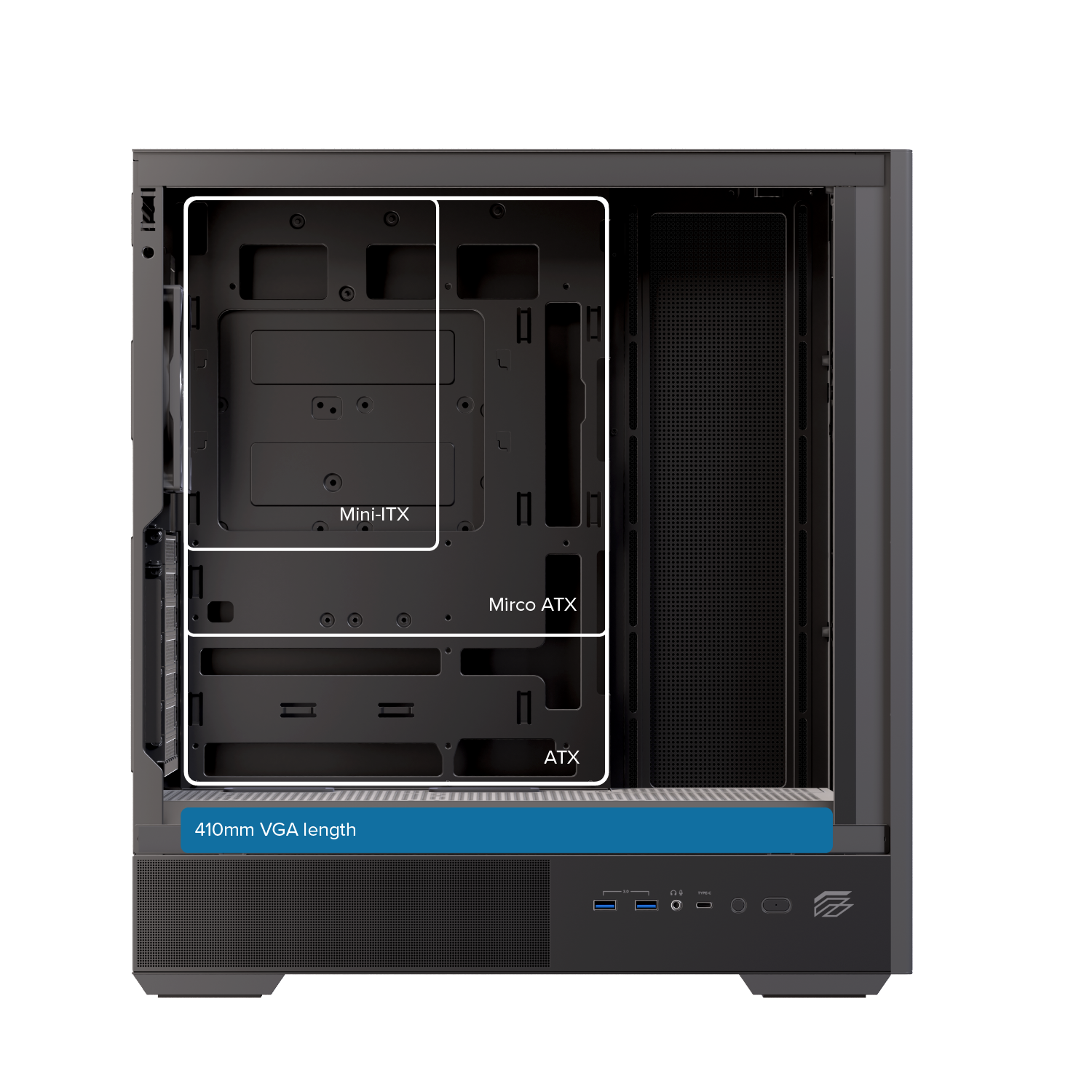

Supports ATX, Micro-ATX, and Mini-ITX motherboards, GPUs up to 400mm, CPU coolers up to 178mm, and PSUs up to 260mm. With 35mm of cable management depth and rotatable PCIe slots, the layout adapts to modern high-performance hardware without compromise.

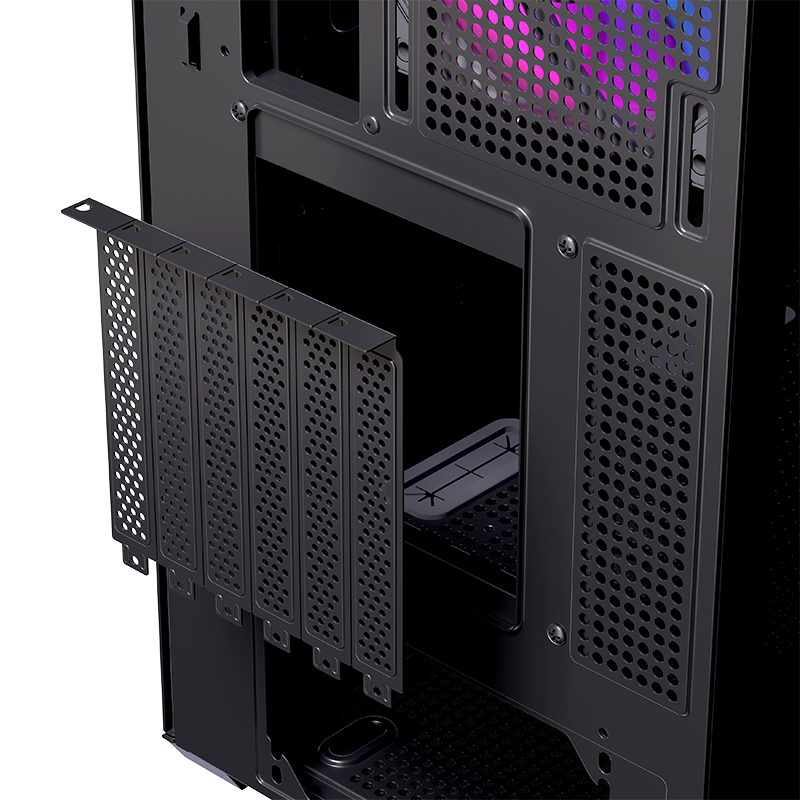

Rotatable PCIe slots allow for vertical or traditional GPU installation, giving users the freedom to prioritize airflow, aesthetics, or form factor without limitation.

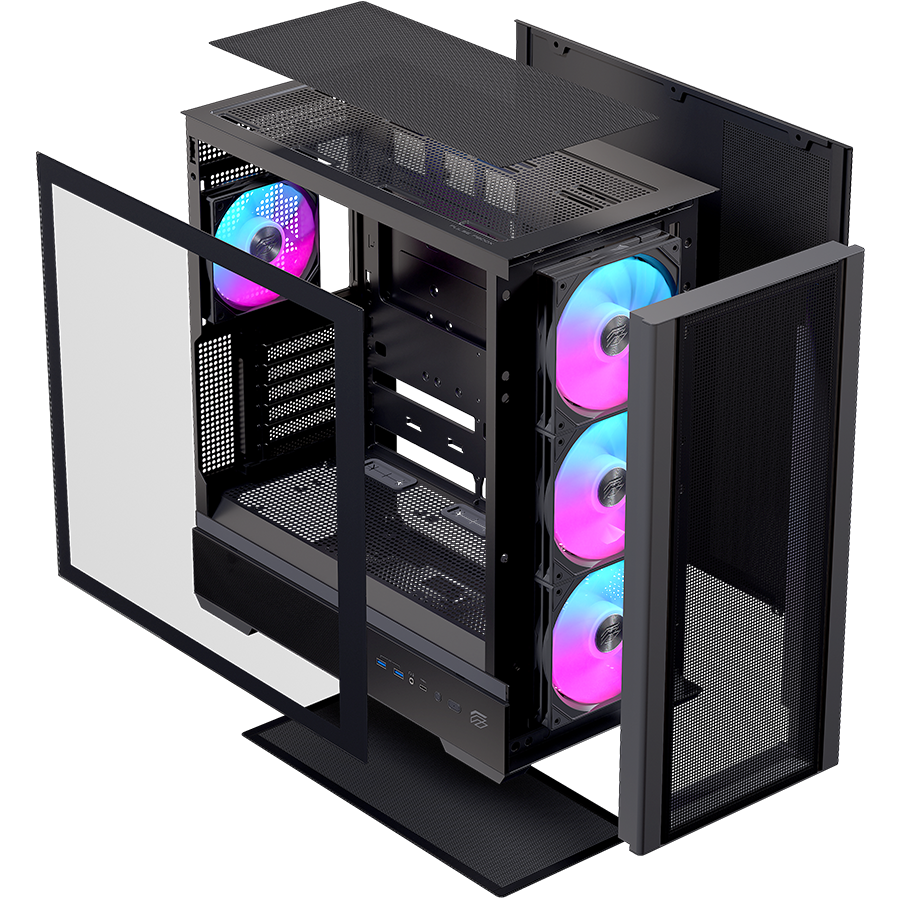

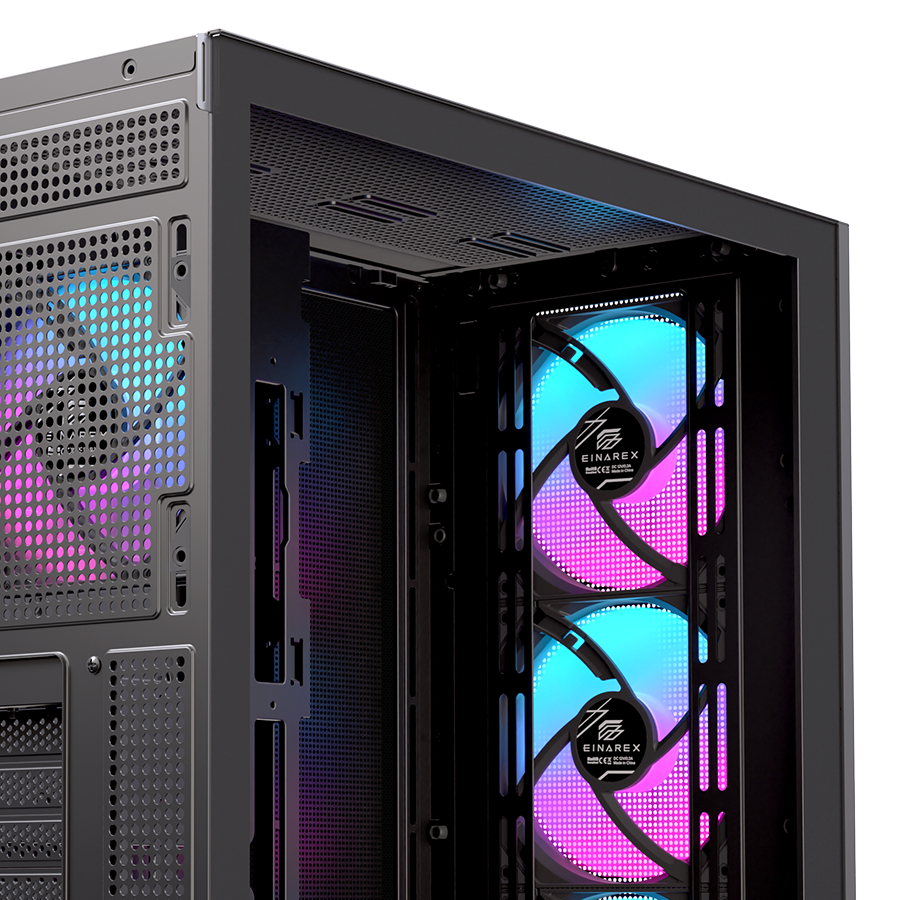

Snap-fit tempered glass and a smart internal layout make upgrades and maintenance straightforward, while keeping the system clean and structurally sound from every angle.

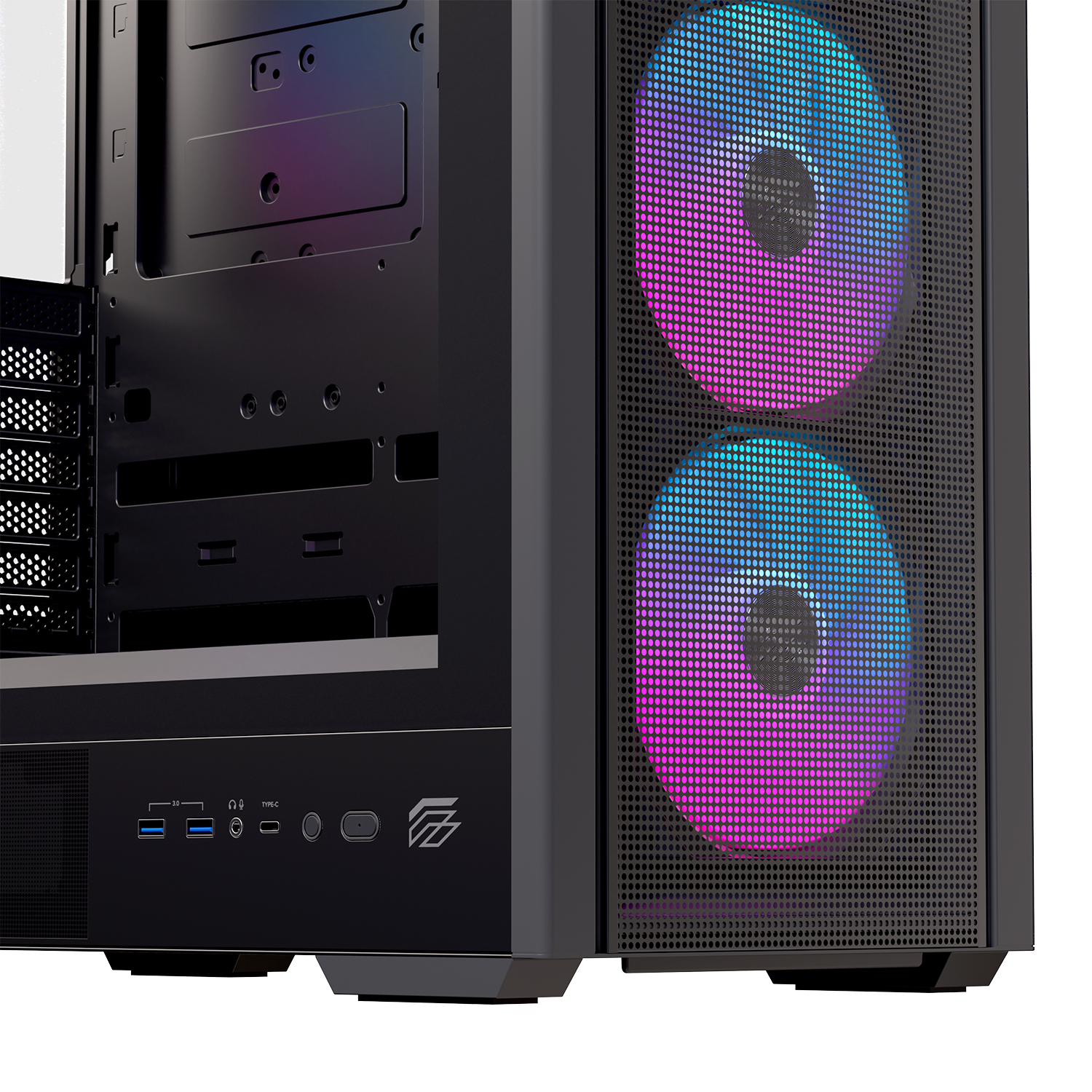

Equipped with USB 3.2 Gen 2 Type-C, dual USB 3.0 ports, and a combined audio/mic jack, the PULSE P800X delivers the connectivity and flexibility required for any task.
Tailored to your imagination. A variety of colors and fan configurations to suit any setup while maintaining perfect proportions.

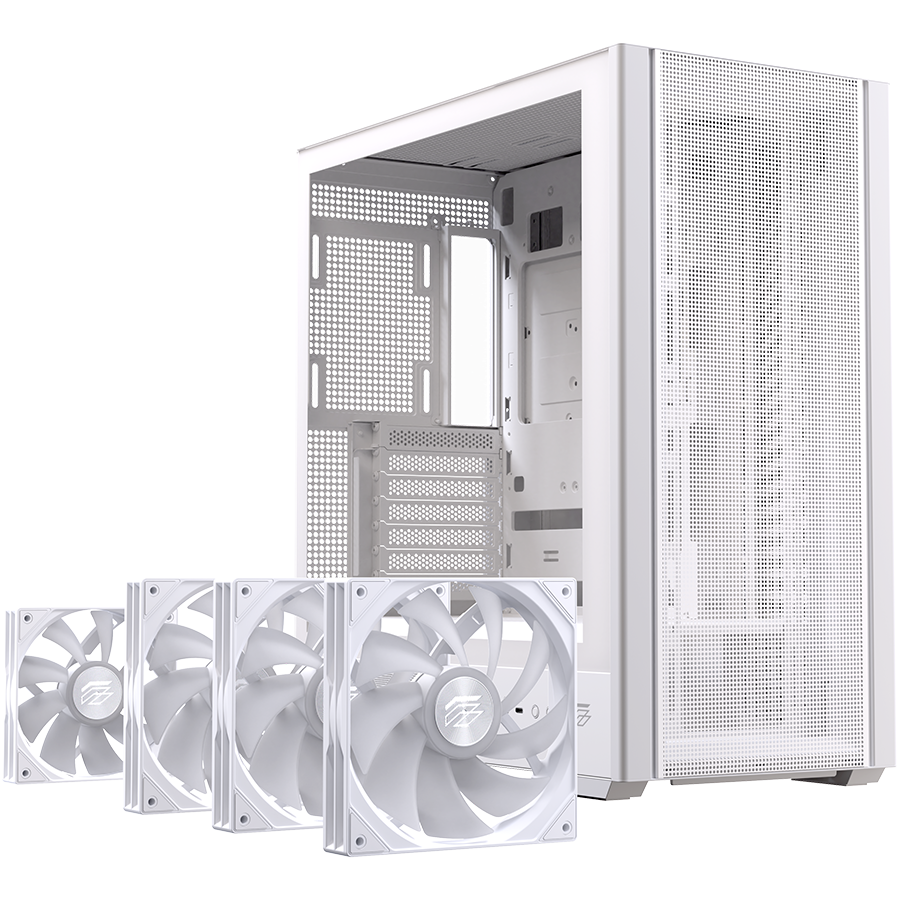

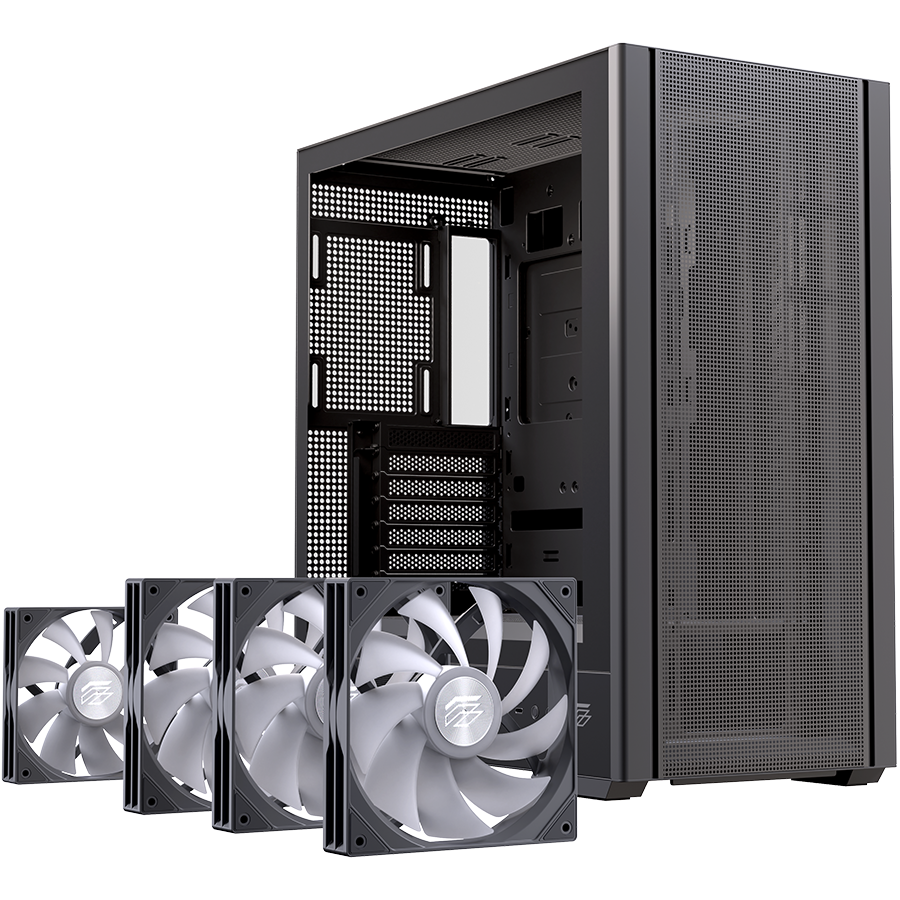

3x140mm RGB fan in the front, 1x 120mm RGB fan in the rear

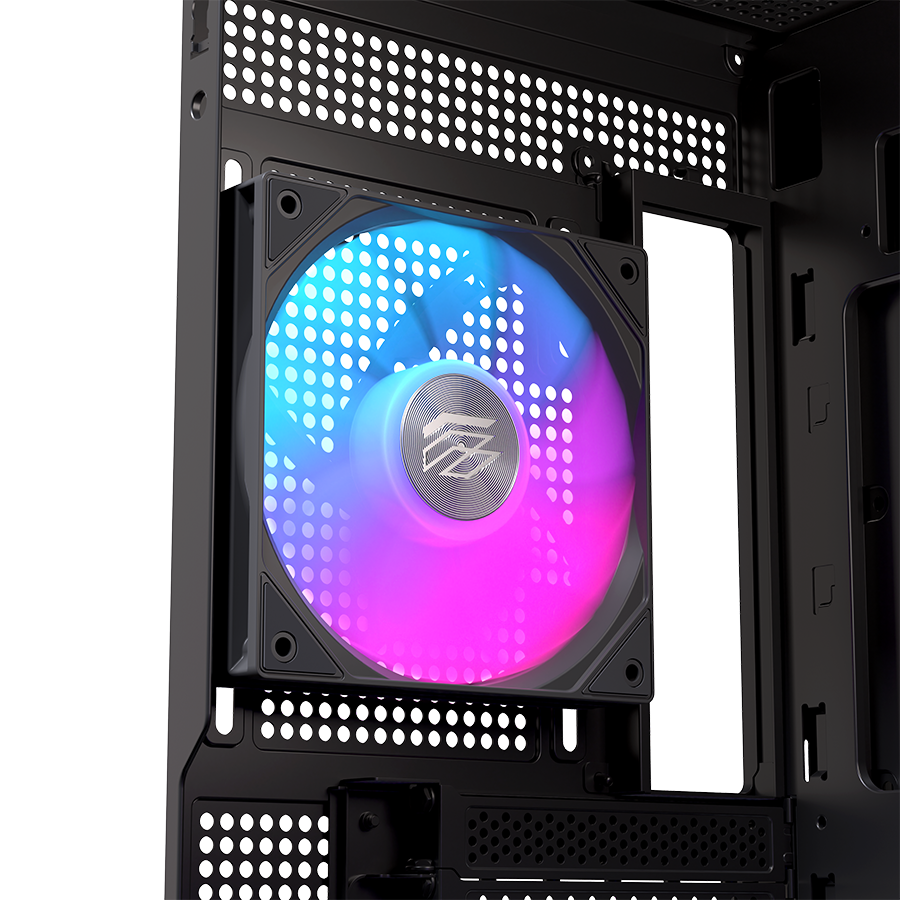

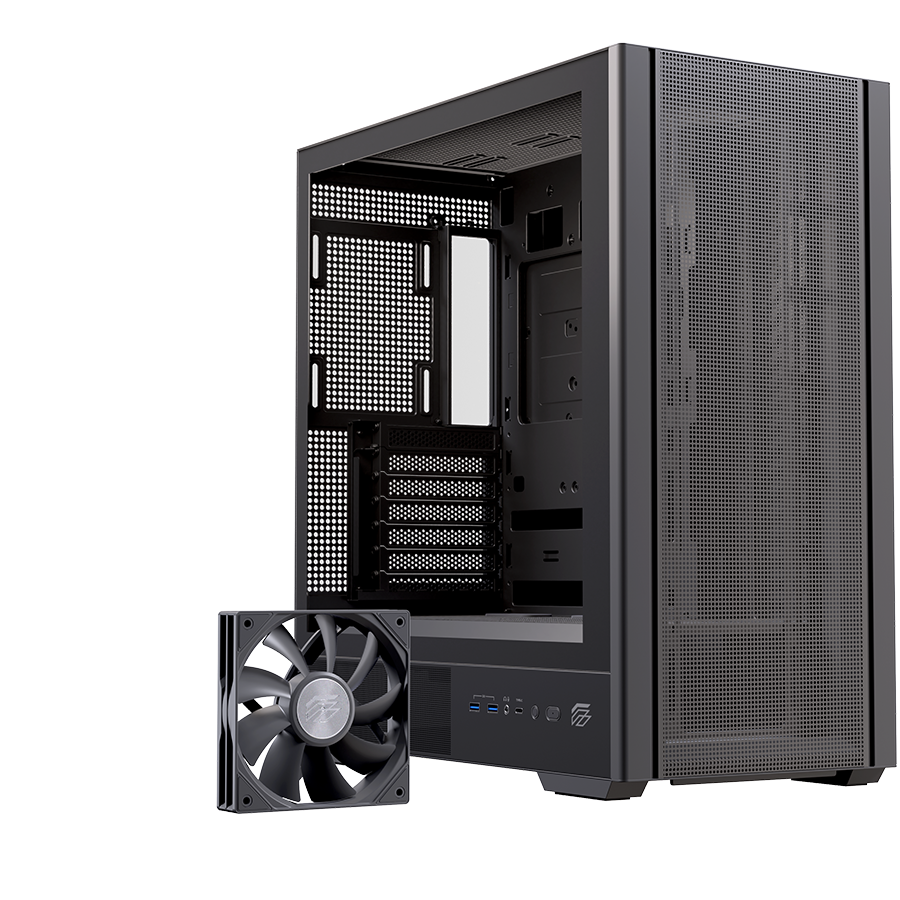

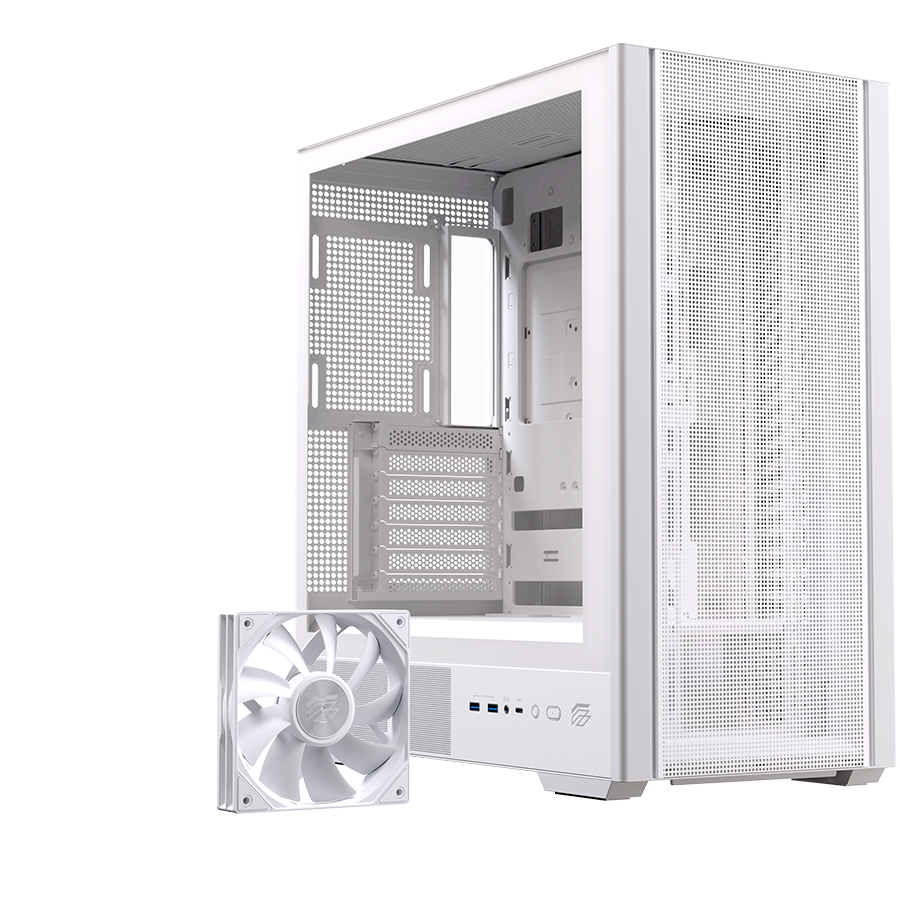

1x 120mm PWM fan in the rear
3x140mm RGB fan in the front, 1x 120mm RGB fan in the rear
1x 120mm PWM fan in the rear
SPCC Steel, ABS, Tempered clear glass
453 x 235 x 492 (mm)
14mm
7,7 Kg NW
Snap-fit design
ATX/Micro ATX / Mini ITX
2x USB 3.0
1x USB 3.2 Type C Gen 2 / 2x USB 3.0
1x Combined Audio/mic Jack 3,5mm

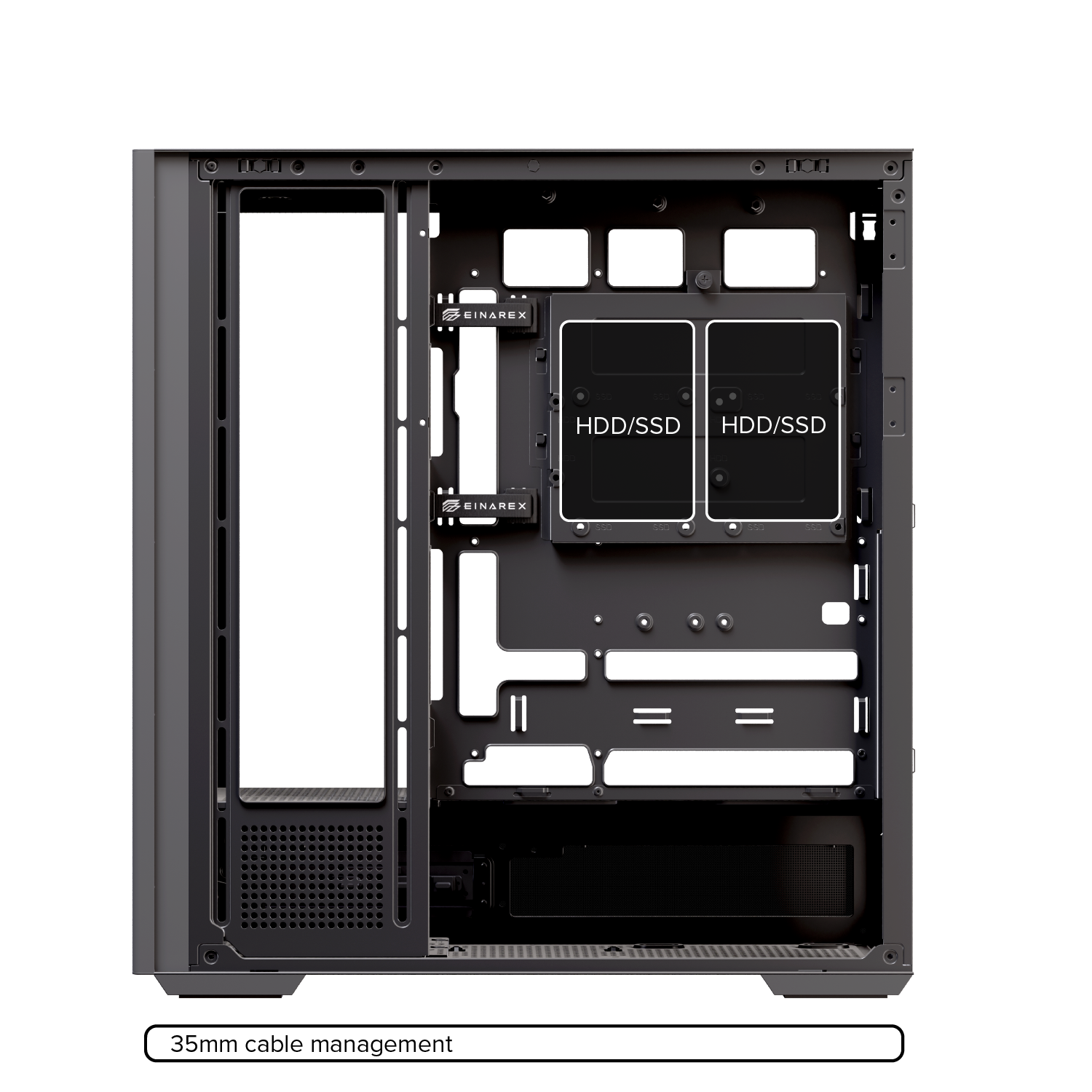

1x 2,5" + 1x 3,5"
x7 rotatable

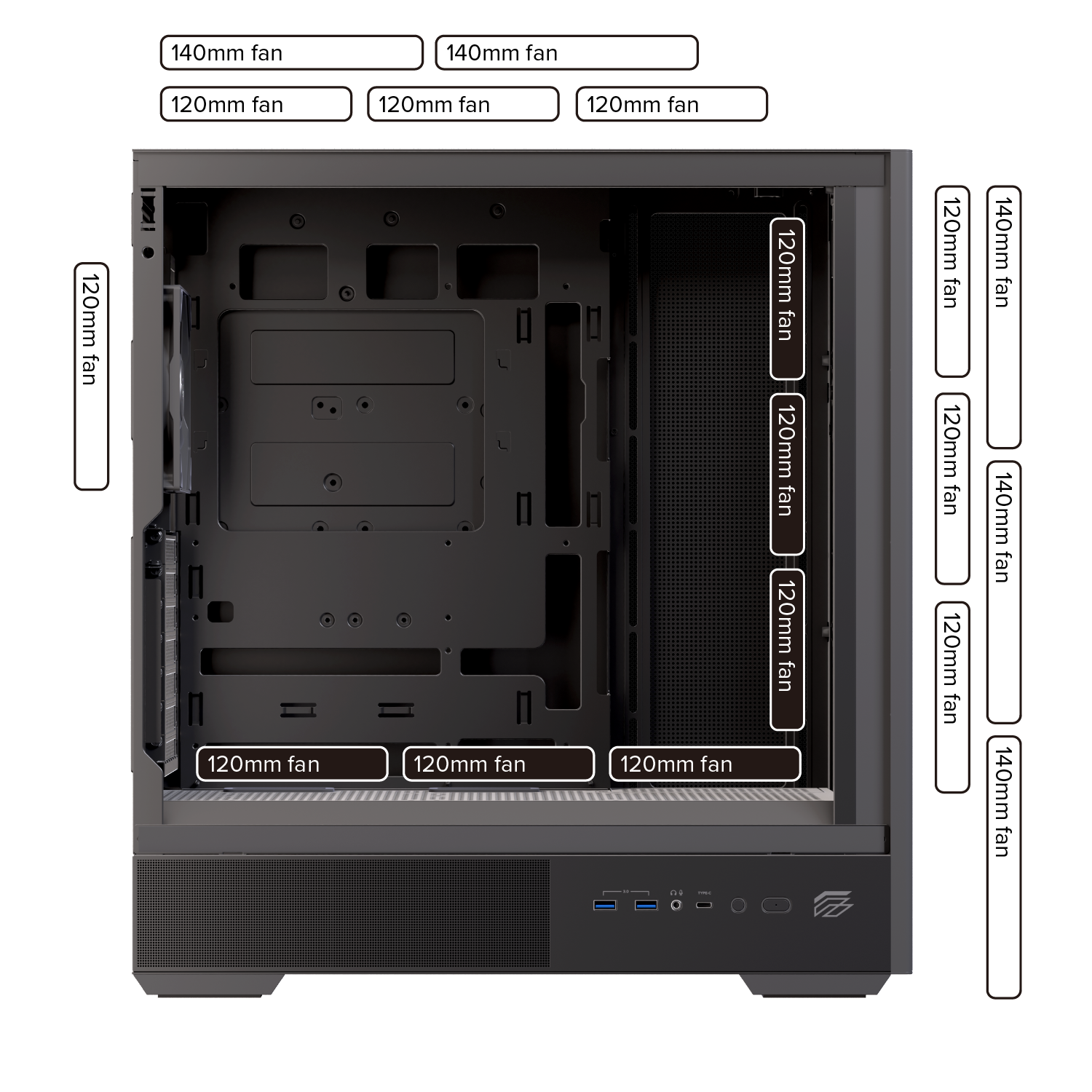

FRONT: 120mm x 3 / 140mm x 3 TOP: 120mm x 3 / 140mm x 2 BOTTOM: 120mm x 3 REAR: 120mm x 1 SIDE: 120mm x 3

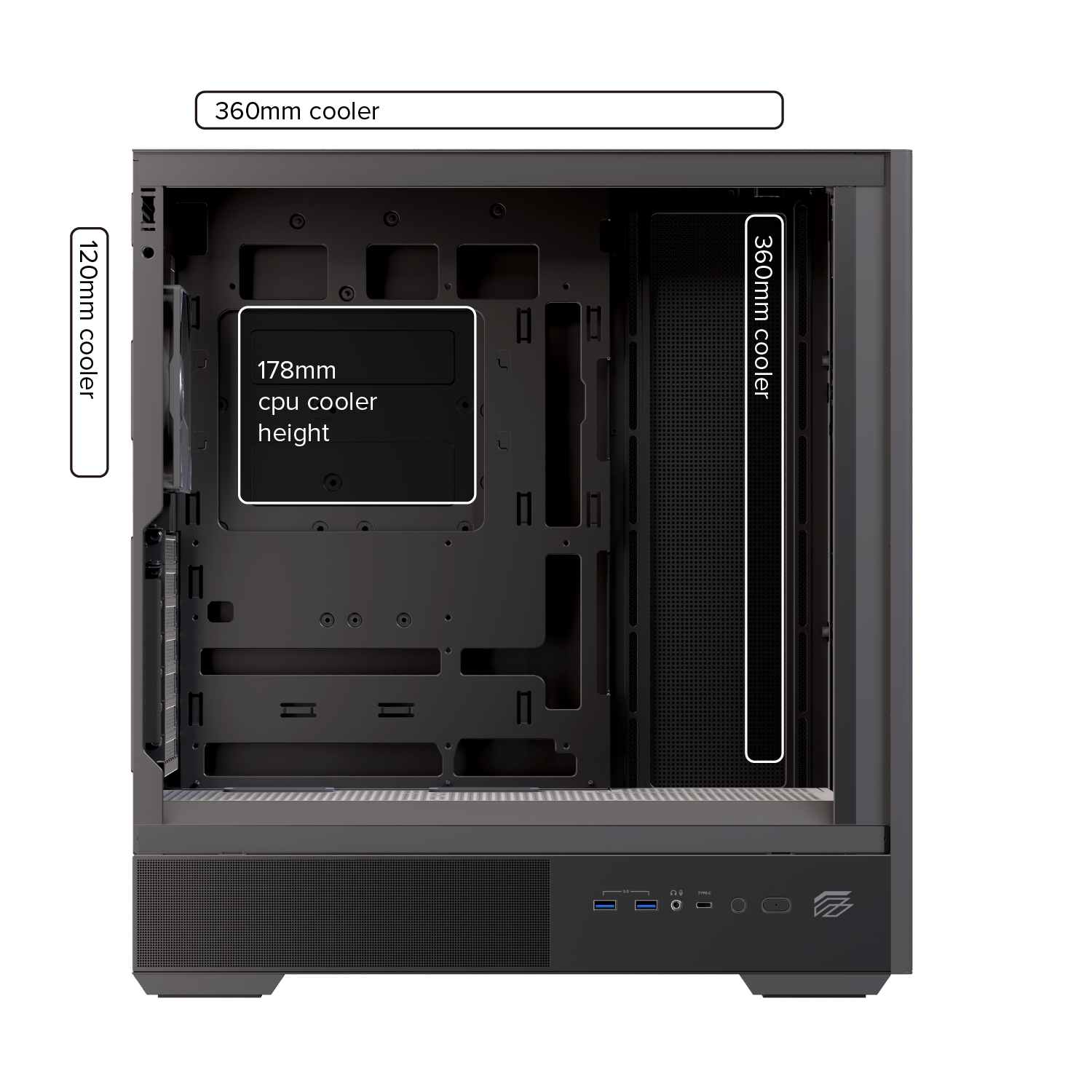

TOP: up to 360mm
SIDE: up to 360mm
REAR: up to 120mm
400mm
178mm
260mm
35mm
